An AC energy meter is a specialized device engineered to collect a variety of AC power or energy data for a single load or an entire system. Generally installed adjacent to an electrical panel or within switchgear, an AC energy meter may continuously gather data to provide detailed insight into consumption patterns, load profiles, and system performance. In addition, some AC energy meters also measure power quality parameters, allowing facilities professionals to stay ahead of harmful PQ issues, protect sensitive equipment, and reduce downtime.

What is AC Energy Metering?

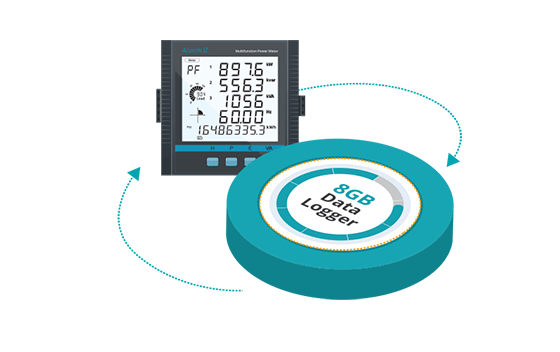

Access robust data logging capabilities by pairing the Acuvim II energy & power meters with the AXM-WEB2 module. With 8GB of internal memory, capture an array of metering parameters for future download or analysis

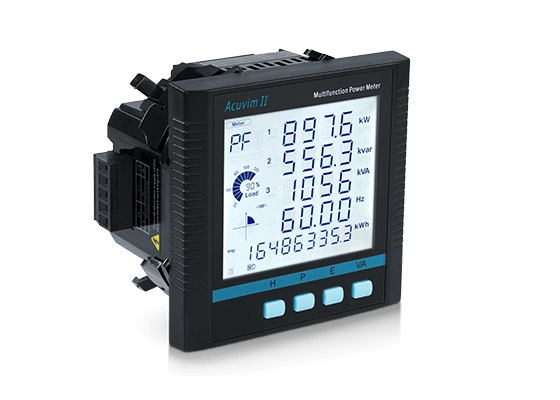

Acuvim II Main Features

DATA LOGGING

Key Specifications:

• Generate historical logs for selected parameters

• Equip the AXM-WEB2 module to expand the memory to 8GB with an up to 50ms logging interval

• The real time clock accurately timestamps all logged events

Access robust data logging capabilities by pairing the Acuvim II energy & power meters with the AXM-WEB2 module. With 8GB of internal memory, capture an array of metering parameters for future download or analysis

POWER QUALITY MONITORING

Key Specifications:

• IEC 61000-4-30 Class S compliant.

• Capture sags, swells, and other critical events with a timestamp and triggering information

• Supports logging individual harmonics up to the 63rd

• Save up to 50,000 power quality events

• All events are stored in non-volatile memory

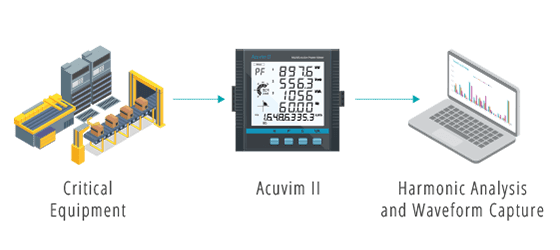

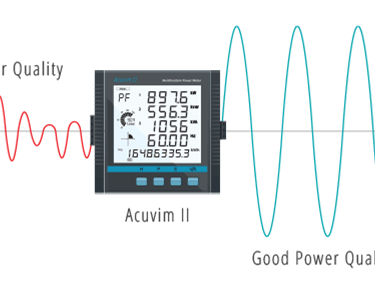

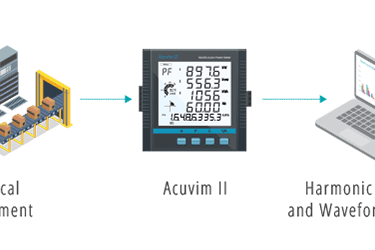

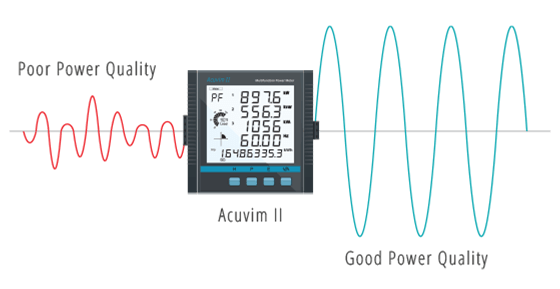

• Gain insight into power quality by capturing waveforms when voltage sags or swells occur

The Acuvim IIW can record voltage & current waveforms. The instrument supports a settable triggering condition and data can be stored for later analysis.

WAVEFORM CAPTURE

Key Specifications:

• Trigger a waveform from voltage sag or swell, over current, or switch status digital input

• Record 100 groups of voltage & current waveform data at a sampling rate of 64 points per cycle

• Data is saved in the COMTRADE format (when using AXM-WEB2)

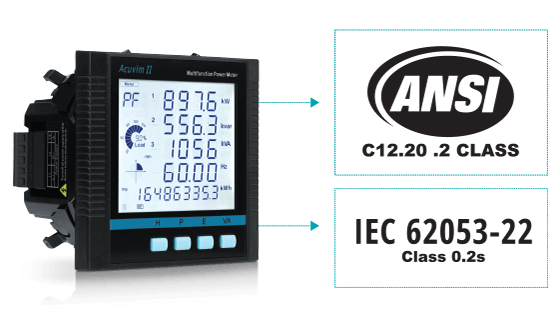

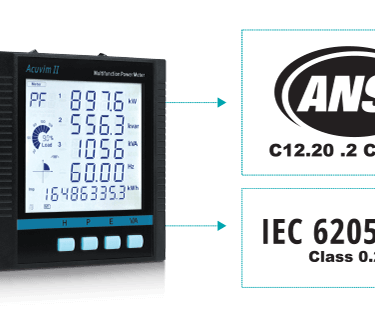

The Acuvim II meter monitors over 400 essential measurement parameters with superior accuracy. Ideal for revenue submetering projects, such as tenant billing or cost allocation, the Acuvim II meter's revenue grade accuracy delivers precise, reliable data in critical applications

INDUSTRY-LEADING ACCURACY

Key Specifications:

• ANSI C12.20 Class 0.1 & IEC 62053-22 Class 0.1s

• 100ms refresh rate with true RMS measurements

• Power and energy measurement accuracy is 0.2%

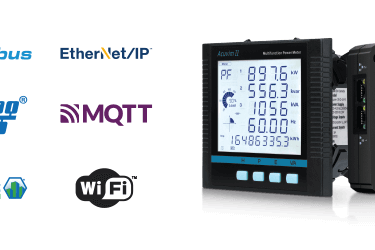

Connect a variety of communications modules directly to the Acuvim II meter to support numerous industrial, open protocols for seamless integration into nearly any existing building management system

MULTI-PROTOCOL SUPPORT

Key Specifications:

• BTL certified for BACnet building automation systems (BAS)

• Built-in Modbus-RTU compatibility

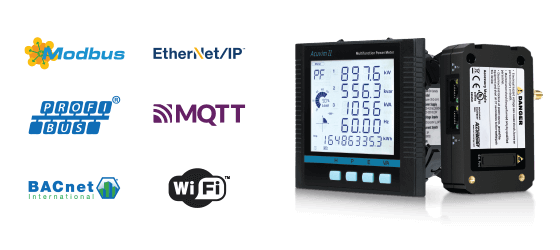

• Add BACnet-IP, Modbus-TCP/IP, PROFINET, EtherNet/IP, MQTT, and other popular industrial protocols.

• Communicate via Serial over RS485, Ethernet, or WiFi for ultimate flexibilit

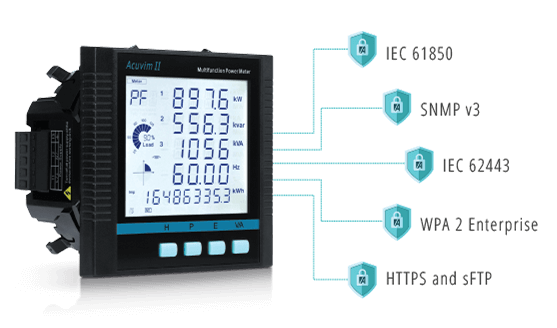

Avoid insecure or unreliable port forwarding solutions by using a dedicated remote access URL to access critical data from any device with an internet connection. The built-in web server offers comprehensive meter access without complicated network configuration

GUARANTEED DATA SECURITY

Key Specifications:

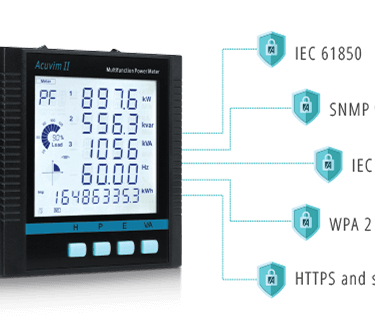

• Industry-leading cyber security: Compliance with IEC 61850 2nd Edition, SSL encryption, TLS 1.2, and SNMP v3

• Compliance with IEC 62443 standard for cyber security for industrial controlled devices

• Strong security over WiFi with WPA 2 Enterprise compliance

• HTTPS and sFTP to safeguard remote connections

• Use a web browser on any device for anytime, anywhere access

• View energy information, real-time meter readings, energy trends, alarms, and more

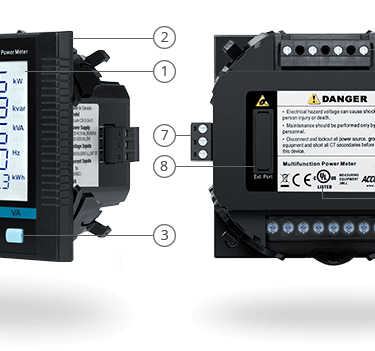

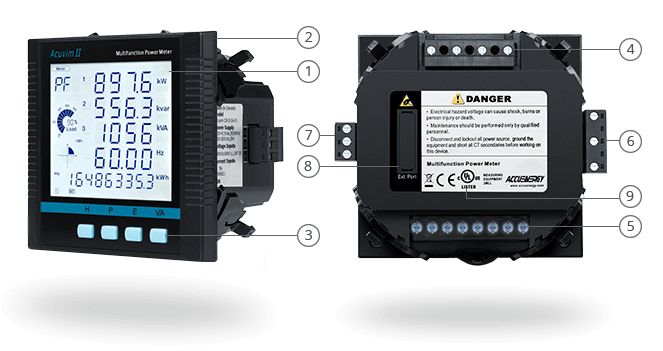

Acuvim II Product Map
