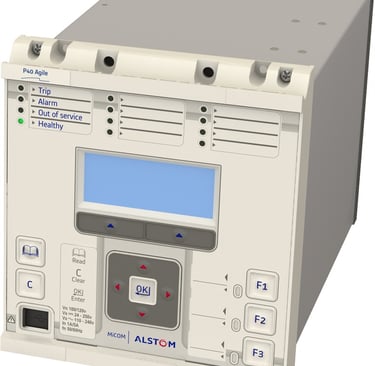

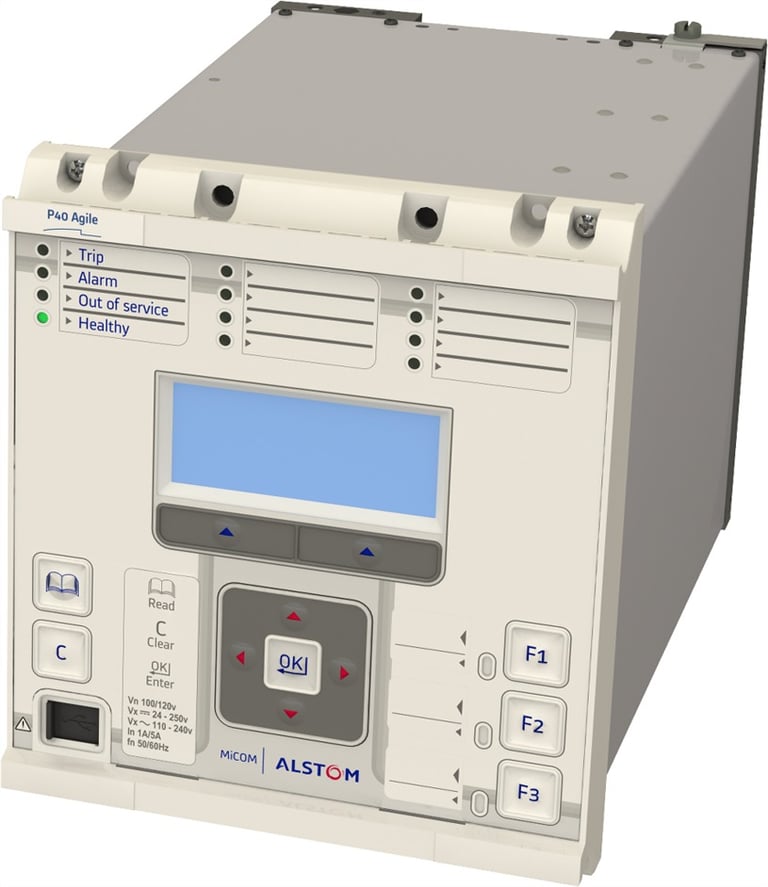

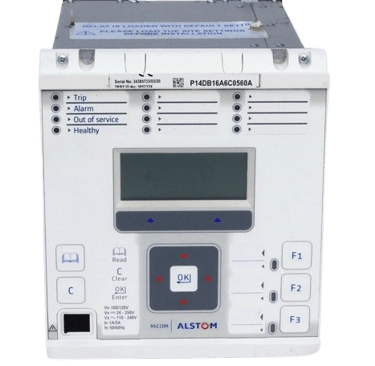

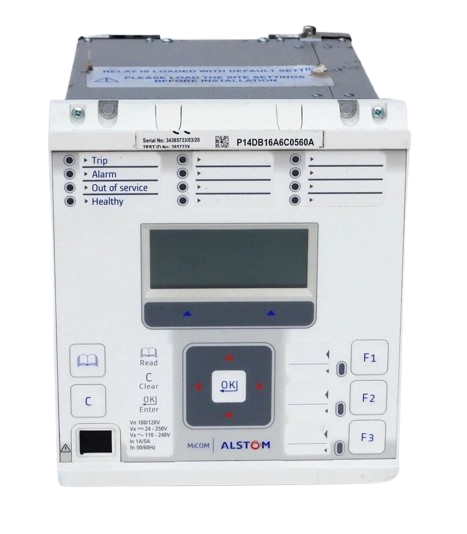

The Alstom Numerical Feeder Protection Relay Agile P14db is a compact, high-performance relay designed to deliver advanced protection, control, and monitoring of electrical feeder systems. Built on the proven MiCOM P40 Agile platform, this device offers reliable directional feeder protection and is suitable for a wide range of utility and industrial power applications

What Alstom Numerical Feeder Protection Relay Agile P14db ?

The Alstom Numerical Feeder Protection Relay Agile P14db is a compact, high-performance relay designed to deliver advanced protection, control, and monitoring of electrical feeder systems. Built on the proven MiCOM P40 Agile platform, this device offers reliable directional feeder protection and is suitable for a wide range of utility and industrial power applications

Acuvim II Main Features

DATA LOGGING

Key Specifications:

• Comprehensive current, voltage, power, and frequency protection

• Multi-stage independent protection elements, customizable curves

• Universal power supply, binary input ratings, and 1A/5A CT – avoids order options

• Records up to 2048 events, graphical logic engine, distance-to-fault location

• Two-stage circuit breaker failure and breaker condition monitoring

• Switchgear supervision including CT/VT, DC supply, full ‘H7’ trip circuit supervision

• Substation communications including IEC 61850, serial and concurrent protocols

• Compact, withdrawable design for reduced space applications

• Eco designed with Product Environmental Profile (PEP), no resident battery

POWER QUALITY MONITORING

Key Specifications:

• IEC 61000-4-30 Class S compliant.

• Capture sags, swells, and other critical events with a timestamp and triggering information

• Supports logging individual harmonics up to the 63rd

• Save up to 50,000 power quality events

• All events are stored in non-volatile memory

• Gain insight into power quality by capturing waveforms when voltage sags or swells occur

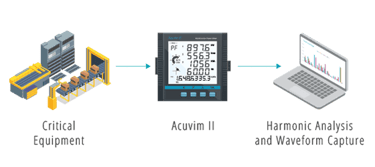

The Acuvim IIW power meter can detect energy deviations using harmonic analysis, event logging, and waveform capture. Use the detailed PQ data to diagnose power quality issues before they cause system inefficiency.

The Acuvim IIW can record voltage & current waveforms. The instrument supports a settable triggering condition and data can be stored for later analysis.

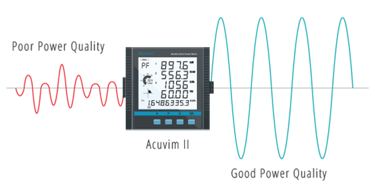

WAVEFORM CAPTURE

Key Specifications:

• Trigger a waveform from voltage sag or swell, over current, or switch status digital input

• Record 100 groups of voltage & current waveform data at a sampling rate of 64 points per cycle

• Data is saved in the COMTRADE format (when using AXM-WEB2)

The Acuvim II meter monitors over 400 essential measurement parameters with superior accuracy. Ideal for revenue submetering projects, such as tenant billing or cost allocation, the Acuvim II meter's revenue grade accuracy delivers precise, reliable data in critical applications

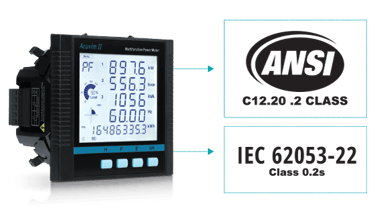

INDUSTRY-LEADING ACCURACY

Key Specifications:

• ANSI C12.20 Class 0.1 & IEC 62053-22 Class 0.1s

• 100ms refresh rate with true RMS measurements

• Power and energy measurement accuracy is 0.2%

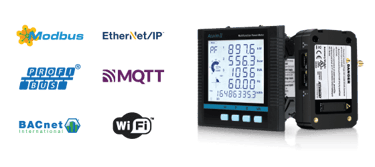

Connect a variety of communications modules directly to the Acuvim II meter to support numerous industrial, open protocols for seamless integration into nearly any existing building management system

MULTI-PROTOCOL SUPPORT

Key Specifications:

• BTL certified for BACnet building automation systems (BAS)

• Built-in Modbus-RTU compatibility

• Add BACnet-IP, Modbus-TCP/IP, PROFINET, EtherNet/IP, MQTT, and other popular industrial protocols.

• Communicate via Serial over RS485, Ethernet, or WiFi for ultimate flexibilit

Avoid insecure or unreliable port forwarding solutions by using a dedicated remote access URL to access critical data from any device with an internet connection. The built-in web server offers comprehensive meter access without complicated network configuration

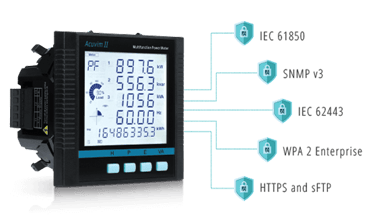

GUARANTEED DATA SECURITY

Key Specifications:

• Industry-leading cyber security: Compliance with IEC 61850 2nd Edition, SSL encryption, TLS 1.2, and SNMP v3

• Compliance with IEC 62443 standard for cyber security for industrial controlled devices

• Strong security over WiFi with WPA 2 Enterprise compliance

• HTTPS and sFTP to safeguard remote connections

• Use a web browser on any device for anytime, anywhere access

• View energy information, real-time meter readings, energy trends, alarms, and more

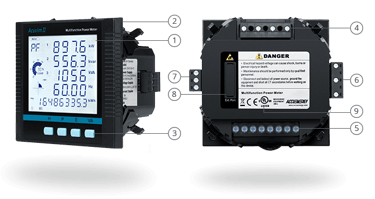

Acuvim II Product Map

LCD Screen

Enclosure

Function Keys

Voltage Input

Current Input

Power Supply

Communication Terminal

Module Connection

UL Listed

01

02

03

04

05

06

07

08

09
